PY Series Spring Cone Crusher

时间：2015-12-30

Application:

Spring Cone Crusher is widely used in Mining, Chemical engineering, Construction and Hydraulic engineering and so on industries. It is applicable to crush different kinds of ore, rock above middle hardness, and the crusher can make you obtain middle size, small size material. Standard type is applicable to obtain middle size material; Middle type is applicable to obtain small size material; Short head type is applicable to obtain ultra-fine.

Characteristic:

Structural simple, uniformity of operation, reliable convenient for operation and adjustment, high efficiency.
Even in output granularity, economics.
Its spring safe system is an overload protection device, which can make metal sundries pass through crushing chamber so as to avoid damage machinery.
Take consistent grease and water sealing two kinds of types. It is possible to separate crushed sand from lubrication, ensure machinery working under reliability condition.

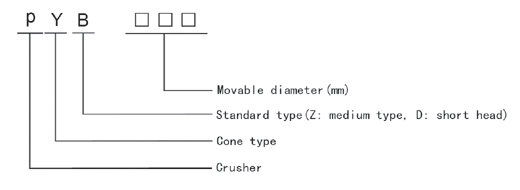

Instructions of Product Model:

Main technical parameters

Type		Diameter of Movable Cone (mm)	Max. Dimension of Feeding (mm)	Width of Discharge Nozzle (mm)	Handling Capacity (t/h)	Power (Kw)	Quantity of Shaft Oscillation (r/min)	Weight (kg)	Dimension of Outline (L x W x H) (mm)
PYB	600	600	65	12～25	40	30	356	5	2234 x 1370 x 1675
PYD	600	600	35	3～13	12～23	30	356	5.5	2234 x 1370 x 1675
PYB	900	900	115	15～50	50～90	55	333	11.2	2692 x 1640 x 2350
PYZ			60	5～20	20～65			11.2	2692 x 1640 x 2350
PYD			50	3～13	15～50			11.3	2692 x 1640 x 2350
PYB	1200	1200	145	20～50	110～168	110	300	24.7	2790 x 1878 x 2844
PYZ			100	8～25	42～135			25	2790 x 1878 x 2844
PYD			50	3～15	18～105			25.3	2790 x 1878 x 2844
PYB	1750	1750	215	25～50	280～480	160	245	50.3	3910 x 2894 x 3809
PYZ			185	10～30	115～320			50.3	3910 x 2894 x 3809
PYD			85	5～13	75～230			50.2	3910 x 2894 x 3809
PYB	2200	2200	300	30～60	59～1000	280～260	220	80	4622 x 3302 x 4470
PYZ			230	10～30	200～580			80	4622 x 3302 x 4470
PYD			100	5～15	120～340			81.4	4622 x 3302 x 4470
