PF Series Centrifugal Reversal Crusher
时间：2015/12/30
|
Characteristic:
The multi-crushing-cavity structure increases the crushing frequency and ensures the granularity of materials.
Optimal combination of plate hammer speed and quantity of plate hammer ensures sufficient crushing depth and prolongs the lifespan of plate hammers.
Energy-efficient design that makes full uses of the rotor energy and reduces wear.
High crushing ratio and even output granularity. Reliable design that is easy to operate and maintain.
Application:
PF series centrifugal reversal crusher is suitable for Metallurgy, Mining, Building and Construction industries. It is the ideal equipment to efficiently crush middle to high hardness materials such as minerals, rocks, limestone, coal and gangue.

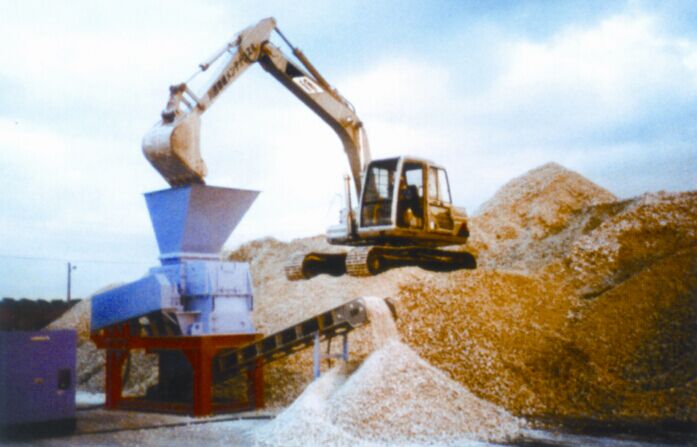

PF-0809 centrifugal reversal crusher was working on the spot of quarry in Yiwate County, Japan.

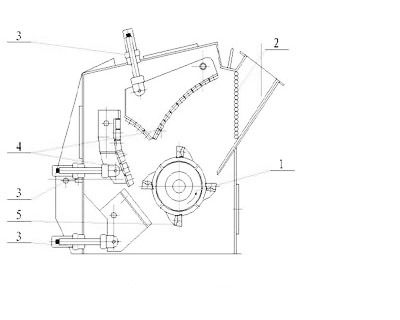

Sketch of PF Centrifugal Reversal Crusher
1. Rotor 2. Chain curtain 3. Adjustor 4. Counterpunch plate 5. Plate hammer

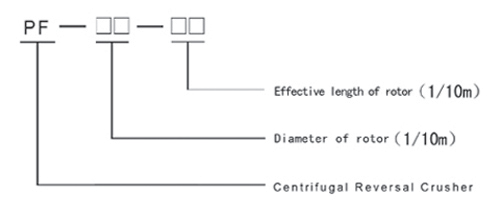

Instructions of Product Model：
Main Technical Parameter
|
Type
|
PF-0606
|
PF-0608
|
PF-0708
|
PF-0809
|
PF-1010
|
PF-1212
|
PF-1414
|
PF-1416
|
PF-1618
|
|
Output
(t/h)
|
5～10
|
10～20
|
20～40
|
40～60
|
60～100
|
100～200
|
150～300
|
200～400
|
300～500
|
|
Granularity of Charging
(mm)
|
≤100
|
≤100
|
≤100
|
≤100
|
≤100
|
≤100
|
≤100
|
≤100
|
≤100
|
|
Granularity of Discharging
(mm)
|
3～15
|
3～15
|
3～15
|
3～15
|
3～15
|
3～15
|
3～15
|
3～15
|
3～15
|
|
Rotor
|
Diameter
(mm)
|
600
|
600
|
700
|
800
|
1000
|
1200
|
1400
|
1400
|
1600
|
|
Length
(mm)
|
600
|
800
|
800
|
900
|
1000
|
1200
|
1400
|
1600
|
1800
|
|
Weight
(Kg)
|
900
|
1400
|
1700
|
2100
|
3000
|
4300
|
5800
|
7300
|
8800
|
|
Weight
(Kg)
|
3698
|
5300
|
8100
|
9560
|
11900
|
16100
|
20000
|
21100
|
24000
|
|
Driving
Motor
|
Revolution Speed
(r/min)
|
1460
|
1470
|
1480
|
1480
|
990
|
990
|
740
|
740
|
740
|
|
Power
(r/min)
|
15
|
22
|
55
|
75
|
90
|
132
|
200
|
220
|
280
|
|
Voltage
(V)
|
380
|
380
|
380
|
380
|
380
|
380
|
6000
|
6000
|
6000
|
|
