PCH round hammer crusher is applicable to crush all kinds of brittle materials, such as coal, gangue, coke, slag, red sandstone, shale, loose limestone, etc. The compression strength of the materials should be less than 40Mpa, and the surface moisture should be less than 8％～11％. For non-sticky materials, the surface moisture should be controlled within 15％.

Characteristic:

Wide application, strong adaptability, high efficiency.
Adjustable output material size.
Install the removing mess device which could remove unbreakable materials efficiently.
Ideal for even, smaller material size output.

The Rotor Part of PCH series Round Hammer Coal Crusher

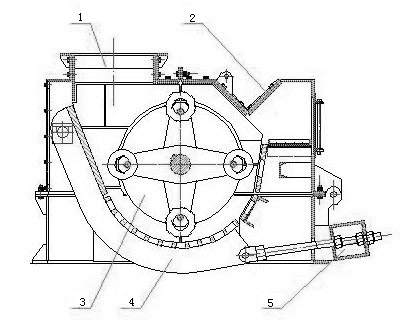

Sketch of PCH Series Round Hammer Crusher

1. Feeder  2. Body  3. Rotor  4. Screen plate  5. Regulating section  6. Iron removal chamber

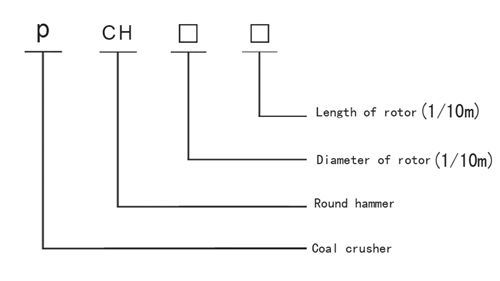

Instructions of Product Model：

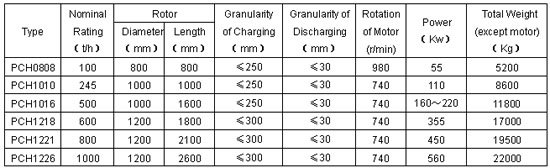

Main Technical Parameter
