Characteristic:

Both sides of casing can be opened hydraulically, making maintenance safe and convenient.
High throughput and energy-efficient, low noise and dust emission.
Digital display vibration and bearing temperature readings of main shaft and equipped with the Monitoring meter (The products are not equipped monitoring meter, if needed, our company can provide it for customer).
Remove iron, wood and other impurities efficiently.

Application:

This product is suitable for Thermal power plants, Metallurgy, Mineral, Chemical industries etc. It is used to crush raw coal, limestone and other medium-density brittle materials to achieve medium-granularity output.
The materials are crushed by the circular hammers with the rotating rotor, then compressed, cut and milled to the required granularity. The materials are processed continuously from top to bottom of the crusher. Iron, wood and other impurities will be channeled to the Iron Removal Chamber to be removed periodically.

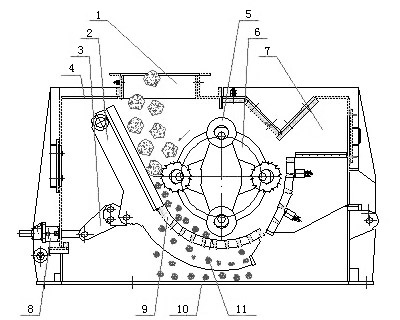

Sketch of KRC Series Round Hammer Crusher

1. Feeder  2. Crushing plate  3. Safety device  4. Body  5. Circular hammer  6. Rotor  7. Iron removal chamber  8. Adjusting mechanism  9. Screen plate  10. Discharging opening  11. Frame of screen plate.
Instructions of Product Model：

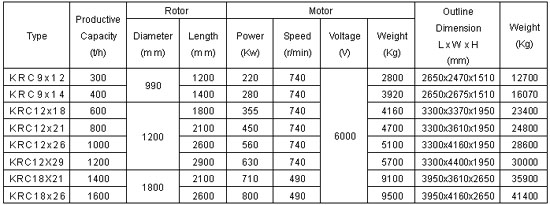

Main Technical Parameter
