Application:
Impeller Powder Feeder is the main equipment that feed powdered coal for boiler in thermal power plant. By means of impeller of the feeder, it transmits the coal powder from the coal powder storehouse to the transmitting pipe continuously and evenly, and then the powder coal is blew into the boiler by the hot air and burnt.
Characteristic:
Driven by direct current variable speed motor or frequency conversion adjustable speed motor, it can do speed variation within a certain scope, and then make powder quantity adjusted so as to control burning in boiler. The machine is compact, light weight, and efficient.
This machine can be used with impact gauge, which can measure the powder instantly and increase the burning ratio; also it can lower the combustible materials in the air.
This machine has a none-leaking structure that is convenient to maintain.

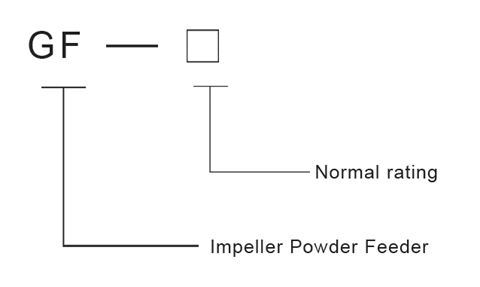

Instructions of Product Model:
Main Technical Parameter
Type |
Normal Rating (t/h) |
Density of Coal Dust (t/m3) |
Diameter of Impeller (mm) |
Tooth Number of Impeller |
Outline Dimension (mm) |
Total Weight (except motor) (Kg) |
GF-1.5 |
0.5~1.5 |
0.8 |
φ313 |
12 |
807x984x1158 |
354 |
GF-3 |
1~3 |
0.8 |
φ313 |
12 |
807x984x1158 |
354 |
GF-6 |
2~6 |
0.8 |
φ313 |
12 |
807x984x1158 |
354 |
GF-9 |
3~9 |
0.8 |
φ386 |
12 |
989x1340x1213 |
480 |
GF-12 |
4~12 |
0.8 |
φ386 |
12 |
989x1340x1213 |
480 |
GF-15 |
5~15 |
0.8 |
φ386 |
12 |
989x1340x1213 |
480 |
