BS Series Fluctuant Coal Screener
时间：2016/1/4
|
|
Characteristics:
This machine is national patent product, by means of machinery method to form its screen by special screen piece juxtaposed on the rotor and rotor rotates at the same direction speed, so the coal on the screen can circumrotate resort to peach-shaped sieve and move forward with fluctuate form so as to come to the purpose of high efficient sieve classification.
This machine is a compact, jam free, large capacity machine. It is versatile, with no vibration, no dust, and little noise.
The machine has by-pass device, so it can be controlled automatically.
Application:
BS series fluctuant coal screener can carry through sieve classification to all kinds of particle material with different specifications that have not been screened so as to meet the requirement of system. This product is one of the important transmissions of coal equipments in thermal power plant, which is widely used in metallurgy, chemical industry, construction materials, and coal.
BS Series Fluctuation Coal Screener was working on site

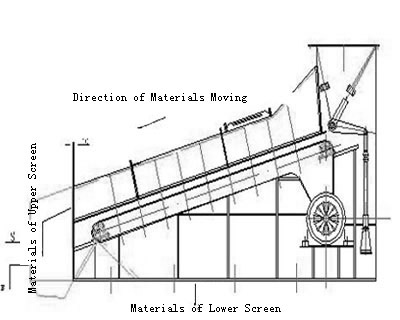

Sketch of BS Series Fuctuant Screening Coal Machine

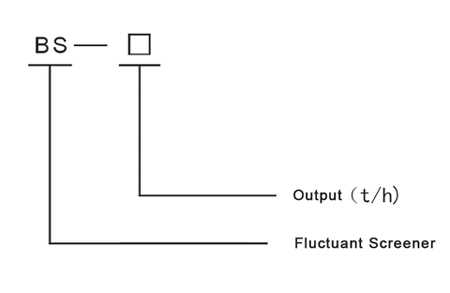

Instructions of Product Model：
Main Technical Parameter
|
Type
|
BS-100
|
BS-200
|
BS-300
|
BS-500
|
BS-700
|
BS-1000
|
BS-1400
|
|
Output
(t/h)
|
100
|
200
|
300
|
500
|
700
|
1000
|
1400
|
|
Number of Axes
|
6
|
7
|
7
|
8
|
9
|
11
|
11
|
|
Dimension of Screen Mesh
(mm)
|
40x100
|
40x 130
|
40x 130
|
40x 130
|
40x 130
|
40x130
|
40x130
|
|
Screen Efficiency
(％)
|
90
|
90
|
90
|
90
|
90
|
90
|
90
|
|
Speed
(r/min)
|
140
|
140
|
140
|
140
|
140
|
140
|
140
|
|
Power
(Kw)
|
3.0
|
5.5
|
7.5
|
11
|
11
|
15
|
22
|
|
Electric Pushing Bar
|
Type
|
Manual operation
|
DT300-50- 40
|
DT300-50-40
|
DT500-50-40
|
DT500-50-40
|
DT500-50-40
|
DT500-50-40
|
|
Power
(Kw)
|
|
0.37
|
0.37
|
0.55
|
0.55
|
0.55
|
0.55
|
|
Thrust
(Kg)
|
|
300
|
300
|
500
|
500
|
500
|
500
|
|
Route
(mm)
|
|
500
|
500
|
500
|
500
|
500
|
500
|
|
Outline Dimension
(L x W x H)
(mm)
|
2655x 2250x 1400
|
3100x 2550x 1935
|
3100x 2900x 1935
|
3400x 3000x 2050
|
3800x 3100x 2150
|
4200x 3100x 2250
|
4500x 3100x 2250
|
|
Weight
(Kg)
|
3500
|
5100
|
6000
|
6500
|
7100
|
9820
|
11800
|
|
|
