Application:
Roller Screen is the screening equipment of transmission system in thermal power plant. As the screening discs rolls, the small sized coal falls into the equipment under the screen through the hole, and over sized materials are pushed forward by rotation of sieve screen and guided to the secondary crusher. This increases the efficiency of crushing.
This machine uses Multi- axes rotation at the same speed, the fluctuant screen discs moves the materials on the screen plate, which has a high screen ratio, big capacity, good seal, low noise, little dust emission for environmental protection. Equipment of overload protection are installed on axes of screen, ensures safe and stable operation.

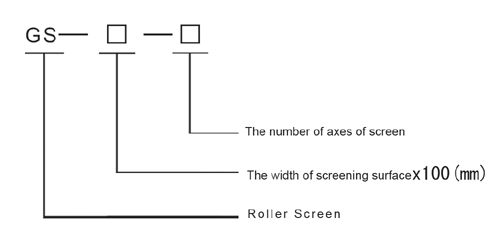

Type
Width of Screen Surface
(mm)
Output (t/h)
Number of Axes
Dimension of Screen Mesh
(mm)
Efficiency of Sieve
(％)
Weight (Kg)
GS-1006
1000
630
6
45x65
75
5800
GS-1009
1000
630
9
45x65
80
8700
GS-1012
1000
630
12
45x65
85
11600
GS-1015
1000
630
15
45x65
90
14500
GS-1406
1400
1000
6
45x80
80
9740
GS-1409
1400
1000
9
45x80
85
14610
GS-1412
1400
1000
12
45x80
90
17480
GS-1415
1400
1000
15
45x80
95
19800
GS-1806
1800
1500
6
45x80
80
10440
GS-1809
1800
1500
9
45x80
85
15660
GS-1812
1800
1500
12
45x80
90
19800
GS-1815
1800
1500
15
45x80
95
24600
|
