Application:
This machine is widely used in vertical transmission of block, particle, powder materials, such as coal, cement, stone, sand, clay and mineral etc.
Characteristic:
This is a durable, compact, large capacity machine that is enclosed and easy to control. In addition, our company also produces THG and TDG type high-efficiency elevator. The elevator use high strength circle chain (THG) or adhesive tape made of steel cable (TDG). The amount of conveying is large and the height of elevating is high.

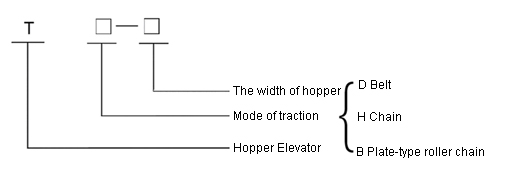

Instructions of Product Model：
Characteristics and the Model of the TD, TH and TB Type Hopper Elevator
|
Type |
TD |
TH |
TB |
|
Characters of Structure |
Adopt apron belt as draw component |
Adopt forged annular chain as draw component |
Adopt plate-type chain, bush chain and roller chain as draw component |
|
Characters of Unloading |
Unload materials by centrifugal type and mixed style |
Unload materials by mixed style and gravity type |
Unload materials by gravity type |
|
Applicable Materials |
Raw densityρ＜1.5t/m3, powdery, small block, non- abradability and semi-abradability materials. |
Raw densityρ＜1.5t/m3, powdery, small block, non- abradability and semi- abradability materials. |
Raw densityρ＜2/m3, middle and big block, abradability materials. |
|
Applicable Temperature |
The temperature of transported materials is less than 60℃. If using apron belt, the temperature is less than 200℃ |
The temperature of transported materials is less than 250℃ |
The temperature of transported materials is less than 250℃ |
|
Model |
TD100、TD160、TD250、TD315、TD400、TD500、TD630 |
TH315、TH400、TH500、TH630、(TH800, TH1000 type elevator should be booked after negotiating with manufacturer) |
TB250、TB315、TB400、TB500、TB630、TB800、TB1000 |
|
Height of Elevating |
Within 4~40m |
Within 4.5~40m |
Within 5~50m |
|
Amount of Transporting |
4~238m3/h |
35-185m3/h |
20-563m3/h |
The Technique Specificity of THG, TDG Type Hopper Elevator
|
Type |
THG Type Hopper Elevator |
TDG Type Hopper Elevator |
|
Characteristic of Structure |
The draw component adopt highstrength circle chain which is made according to the standard of GB/T12718-41 “Mine-using highstrength circle chain” |
Adopt EP conveyer and wire cable tape as draw component |
|
Characteristic of Loading |
Load by drawing out |
Load by drawing out |
|
Characteristic of Unloading |
Unload by mixed style and gravity type |
Unload by mixed style and gravity type |
|
Applicable Transportation Materials |
When outfitted SH type scoop, the product is applicable to transport dry, raw, and well-flowability materials in powdery, grain and small block shape |
When outfitted SH type scoop, the product is applicable to transport dry, raw, and well-flowability materials in powdery, grain and small block; When outfitted ZH type scoop, the product is applicable to slightly moisture, easy agglomeration, and bad-flowability powdery materials. |
|
Applicable Temperature |
The temperature of transported materials is less than 250℃ |
Common tape is applicable to the materials below 80℃; Heatproof tape is applicable to the materials below 120℃ |
|
Model |
THG160, THG200, THG250, THG315, THG400, THG500, THG630, THG800, THG1000, THG1250, THG1600 |
TDG160, TDG200, TDG250, TDG315, TDG400, TDG500, TDG630, TDG800, TDG1000, TDG1250, TDG1600 |
|
Height of Elevating |
5~75m |
5~80m |
|
Amount of Transporting |
16~1800m3/h |
24~2080m3/h |
