TD75 Series Draper Type Conveyor
时间:2016-1-4

Application:

This machine is widely used in Metallurgy, Coal, Communication, Hydroelectricity and Electricity, all kinds of block shape and particle shape bulk materials or finished products whose transmission bulk specific gravity is 0.5~2.5t/m3.

Characteristic:

This is a durable, low maintenance, large capacity, and low cost machine.
The technical layout is flexible. It can convey material by single machine, and it can also be combined into horizontal or inclined or with other conveyer system with multiple machines or with other conveyer machine.
The environment temperature of this machine is –15℃ ~ 40℃, the temperature of conveyed materials is below 50℃.

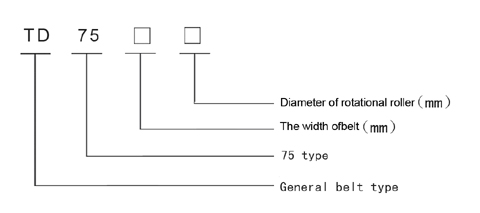

Instructions of Product Model

Main Technical Parameter

Type of Cross Section

Speed of Belt (m/s)

Width of Belt

(mm)

500

650

800

1000

1200

1400

Transmission

 (t/h)

Groove Shape

0.8

78

131

--

--

--

--

1.0

97

164

278

435

655

891

1.25

122

206

348

544

819

1115

1.6

156

264

445

696

1048

1427

2.0

191

323

546

853

1284

1748

2.5

232

391

661

1033

1556

2118

3.15

--

--

824

1233

1858

2528

4.0

--

--

--

--

2202

2996

Plane Shape

0.8

41

67

118

--

--

--

1.0

52

88

147

230

345

469

1.25

66

110

184

288

432

588

1.6

84

142

236

368

558

753

2.0

103

174

289

451

677

922

2.5

125

211

350

546

821

1117
