VSR Series Full Automatic Vibration Ageing Device
时间：2016/1/5

Application:

Full automatic vibration ageing device is the ideal equipment of relieving the internal stress of weldment, casting and machining parts. It is also the ideal equipment of replacing the heat ageing and weathering.
Characteristic:

Stress relieving 75％~90％, which is higher 15％ than heat ageing.
Saving time, processing time is less than 40 minutes
No pollution
Saving energy source, labor and material resource
Workpiece in small change and non-oxidation
The device accords with the national standard JB5925.2-91, JB/T10375-2002, JB/T5926-91
Mechanism of vibration aging:

Vibration aging that is to apply periodic exciting force for handled workpiece makes it produce resonance. After acquired vibration energy, the inside of the workpiece produce microcosmic plastic deformation, which makes restore balance of the tortuous lattice which produce the residual stress.

VSR Series Full Automatic Vibration Ageing Device is working



Sketch of Vibration Ageing Processes

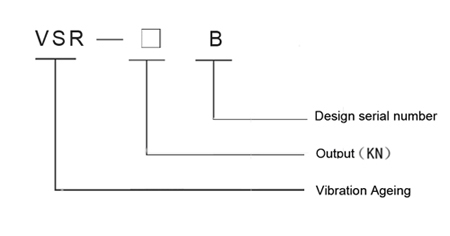

Instructions of Product Model：



  Main Technical Parameter

Type

VSR-10B

VSR-20B

VSR-35B

Specification

10KN

20KN

35KN

Max. Output Power

0.8KW

1.2KW

2.2KW

Rated Revolution

10000r/min

10000r/min

8000r/min

Stable Precision

±1r/min

±1r/min

±1r/min

Fixed Frequency Precision

±0.166S-1

±0.166S-1

±0.166S-1

Accelerated Speed Scope

0~999m/r2

0~999m/r2

0~999m/r2

Timing Scope

0~99min

0~99min

0~99min

Weight of Workpiece

0.01～50t

0.01～50t

0.01～350t

Power

AC170-260V50HZ

AC170-260V50HZ

AC170-260V50HZ
